WCTNZ® ventilation accessory

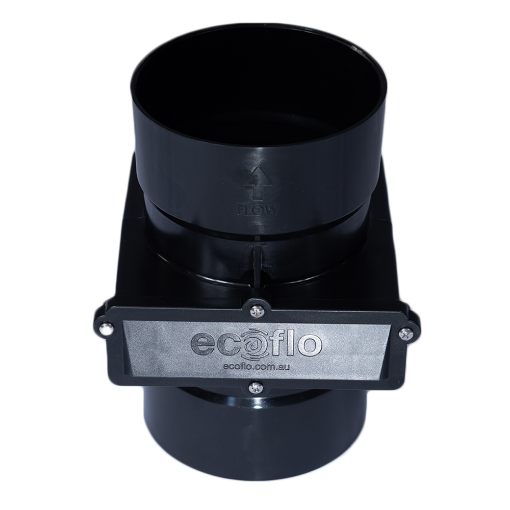

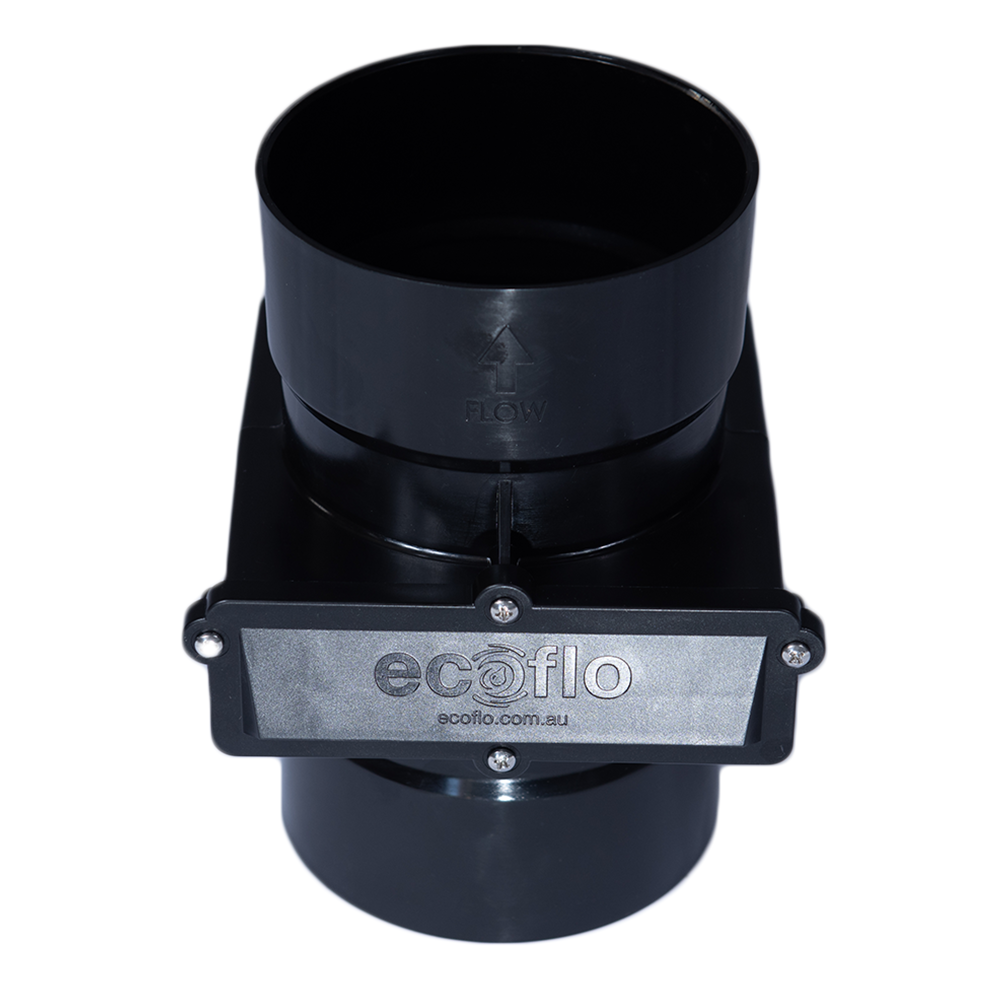

100mm Diameter Fan Housing Kit

A compact, serviceable fan housing for 100mm DWV PVC ventilation systems, available with a choice of 120mm DC fans in 12V, 24V or 48V.

The housing allows the fan to be accessed and replaced without dismantling the surrounding vent pipe, making installation and future servicing more practical.

Pipe connection

100mm DWV

Fits standard AUS/NZ PVC vent pipe

Fan size

120mm

Replaceable DC fan

Voltage options

12V–48V DC

Multiple airflow options

Warranty

1 / 5 Years

Fan / housing warranty

Features and benefits

Compact housing with straightforward fan access

Simple and flexible installation.
High-airflow fan options.
Durable HDPE housing body.
Compact design for inline installation.
Fan can be replaced without dismantling the surrounding pipework.
Housing designed to meet IP68 requirements.
One-year fan warranty and five-year housing warranty.

Applications

Suitable for indoor and outdoor ventilation

Waterless and composting toilet vent pipes.
Sewer and wastewater vent pipes.
Boat ventilation.
Confined-space ventilation.
Computer and equipment-room ventilation.

Fan selection

Available 120mm DC fan options

12V DC / 5W

IP68 fan rated at 75 CFM.

12V DC / 5.4W

IP69K fan rated at 120 CFM.

24V DC / 11W

IP68 fan rated at 167 CFM.

24V DC / 4.1W

IP68 fan rated at 112 CFM. WCTNZ® best off-grid fan option.

24V DC / 7.7W

IP69K fan rated at 120 CFM.

48V DC / 5W

IP54 fan rated at 100 CFM.

48V DC / 6.4W

IP68 fan rated at 120 CFM.

Power-supply selection: Where the selected fan will be powered from a 230–240V AC supply, choose the correct matching AC-to-DC power supply in Product Options. The power-supply output must match the voltage of the selected fan.

Fan-mesh compatibility

Fan options supplied without fan mesh

The following fan options cannot be installed with the optional fan mesh and are supplied without it:

24V DC / 4.1W / IP68 / 112 CFM.
24V DC / 11W / IP68 / 167 CFM.
48V DC / 5W / IP54 / 100 CFM.
48V DC / 6.4W / IP68 / 120 CFM.

Housing and package

Housing-kit details

Pipe fit

Fits directly onto 100mm DWV AUS/NZ-standard PVC pipe.

Housing cap

Supplied with an O-ring and connector terminal.

Package includes

One fan housing together with the fan selected in Product Options.

Approved-system use: This fan housing kit is supplied for use with official WCTNZ® systems and is not offered as a general-purpose component for unsupported DIY ventilation projects.

Product warranty applies where the part is installed with an approved WCTNZ® system and used in accordance with the applicable installation and electrical requirements.

WCTNZ® ventilation support: Fan voltage, airflow, power supply, vent height, pipe routing and system compatibility should be considered together. Contact WCTNZ® before ordering where you are replacing an existing fan or designing a non-standard ventilation pathway.
