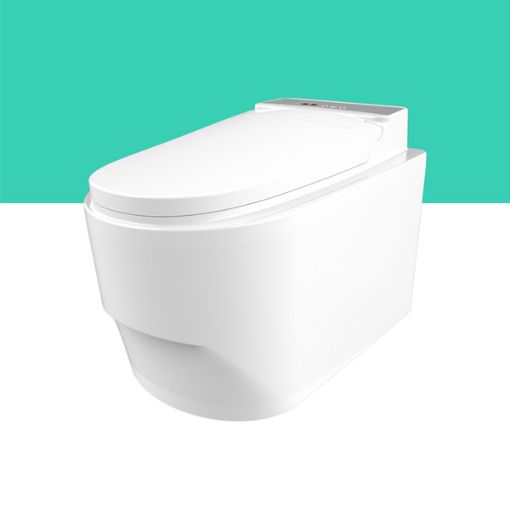

Bionova self-contained composting toilet
Bionova | Cabin
A compact powered self-contained composting toilet for baches, cabins, holiday properties and small off-grid buildings.
The Bionova Cabin keeps the composting process within the toilet itself and uses automated internal mixing, extractor-fan airflow and temperature-managed chamber support to reduce day-to-day intervention while maintaining a practical biological operating environment.
FormatSelf-Contained
No remote composting chamber
Power220–240V
170W rated system
OperationAutomated Mixing
Powered internal support
Best fitSmaller Occupancy
Cabin, bach and holiday use
Product background
A modern self-contained pathway for smaller buildings
Cabin is the smaller-occupancy model within the Bionova Cabin Series.
It is particularly well matched to the way many New Zealand holiday buildings are used — weekends, seasonal stays and intermittent occupancy rather than constant high-volume loading.
Because the biological processing takes place inside the toilet, the building does not need a separate underfloor or remote composting chamber.
How it works
Load, mix and support the biological process
Stage 1 Load & balance Waste enters the self-contained chamber and is managed with the correct bulking material and biological additives for the system.
Stage 2 Mix & aerate Automated internal mixing and extractor-fan airflow help maintain porosity and oxygen movement through the composting mass.
Stage 3 Support biology Temperature-managed chamber support helps maintain the operating environment while the owner follows the required bulking, moisture and maintenance routine.
Best suited for
Smaller occupancy and holiday-style use
- Baches and holiday properties.
- Remote cabins and getaway buildings.
- Sleep-outs and compact modular buildings.
- Glamping or accommodation settings with suitable expected loading.
- Projects where a modern self-contained toilet is preferred over a separate composting chamber.
Capacity context: the Cabin is positioned as the smaller-occupancy model in the Cabin Series. Actual suitability depends on occupancy, use pattern, climate and ongoing biological management.
Specifications
Product and electrical details
Unit size
600mm long × 470mm wide × 510mm high.
Shipping dimensions
Approximately 780mm × 500mm × 740mm.
Unit weight
Approximately 30kg.
Maximum load bearing
150kg.
Outer body
High-gloss polypropylene.
Internal materials
Polyamide and polypropylene.
Power
220–240V AC, 50/60Hz, 170W.
Electrical classification
Class I.
Average energy use
Approximately 0.55kWh per day, depending on operating conditions and use pattern.
Good to know before purchase
The hardware supports the process — the biology still needs managing
A composting toilet is an operating biological system. The powered hardware supports mixing, airflow and chamber conditions, while successful composting still depends on maintaining the correct balance of moisture, carbon and airflow.
Correct setup and routine management matter. Using the specified bulking material, following the operating guidance and responding to changes in the composting mass help keep the system performing consistently.
Use patterns affect the composting environment. Seasonal loading, heavier weekends and changes in occupancy can alter moisture and carbon requirements, so the system should be managed around how the property is actually being used.
WCTNZ® provides the system guidance. Correct commissioning and understanding how the biological process behaves are important parts of successful long-term operation.
WCTNZ® is the exclusive authorised New Zealand distributor of Bionova composting toilets. Bionova systems supplied through WCTNZ® include the applicable manufacturer warranty pathway and local product support.
Cabin or Cabin Plus?
Cabin is the simpler smaller-occupancy model. Cabin Plus adds urine separation and a dedicated urine container to improve liquid management and better suit higher occupancy or more frequent use.
Before you choose, think:
1. Your place — tiny home, bach, family home, RV, or public site
2. Your building — whether it suits a self-contained or split composting toilet system
3. Your needs — user numbers, maintenance preferences, and how off-grid you want to be
To narrow it down properly, start with the Composting Toilet Guide .
Open the WCTNZ® Selector Guide »
