EcoLet™ | Separera Mini - Installation Kit

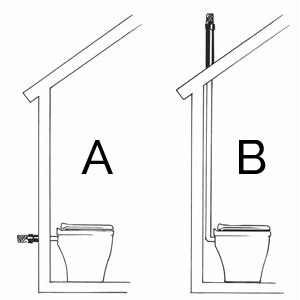

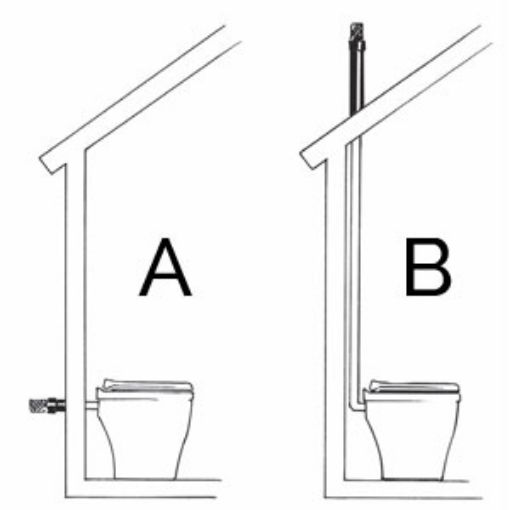

(Position B – ventilation through the roof)

This Installation Kit is required to achieve a safe and watertight vertical vent to properly expel air from the Separera Mini to an above-roof position.

All the EcoLet™ | Separera Mini models came standard as Option A – ventilation through external wall air vent setup

Installation kit includes the following:

• Ventilation pipes (4x1.1 m ventilation pipe with 55 mm outer diameter)
• Exterior pipe (1 x 1.1m with 110 mm outer diameter)
• Insulation (2 x 1 m)
• Reducing coupling, roof flashing, and insect netting

The connection kit used in installation option B can be ordered from your dealer.

1.1 Meter Extensions:

• One 1.1 lengths of exterior-rated 50mm vent pipe insulation
• One 50mm pipe saddle

* 2 to 3 Additional 1.2 Metre Extensions are required if the ventilation stack is more than one story high.

* Each 1.1 Metre Extension has an installed length of 1.1mm

Notes;

Standard NZ plumbing fittings do not fit the EcoLet™ ventilation pipe.
Maximum bends - no more than 2 bends in total.
Above the roof, ventilation components are not included with the EcoLet™ | Separera Mini system package.
