Mid-sized grease management

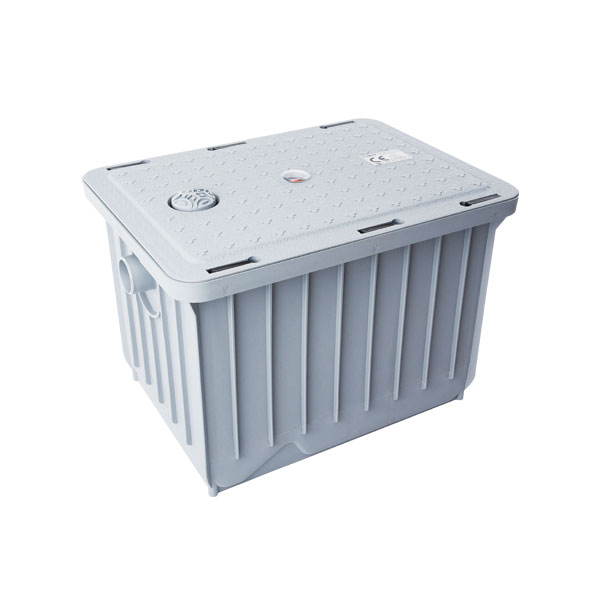

Passway™ | M-43E
A 64L Passway™ gravity grease separator for medium-use kitchens requiring accessible grease interception and routine servicing.
The M-43E uses controlled flow, internal baffles and gravity separation to reduce fats, oils, grease and retained solids travelling into downstream drainage or treatment systems.
Total capacity64L
Mid-sized unit
Water capacity47L
Operating volume
Grease capacity16L
FOG storage
Independent testNS0.2
BS EN 1825-1
Product background
Grease management for medium-use kitchens
The Passway™ M-43E provides more grease-storage capacity than the compact M-43F while retaining a relatively small physical footprint and straightforward service access.
Lower-density fats, oils and grease separate within the chamber while heavier material can settle. Internal baffles and the outlet arrangement help reduce direct carry-over into downstream pipework.
The outlet remains wastewater. The M-43E reduces FOG and retained solids but does not produce potable, purified or disinfected water.
Best suited for
Medium kitchens and selected light-commercial sites
- Higher-use domestic kitchens.
- Staff kitchens and shared facilities.
- Small commercial food-preparation areas.
- Cafés and light food-service sites where the calculated loading suits the separator.
- Sites requiring more FOG storage than a compact small-kitchen grease trap.
Final selection must be based on the actual connected fixtures, peak wastewater flow, grease loading, temperature, selected connection arrangement and service interval.
Core specifications
M-43E product details
Dimensions
Approximately 600mm long × 450mm wide × 415mm high.
Product weight
Approximately 9.74kg.
Operating water capacity
47L.
Connection configurations
50mm, 75mm and 100mm configurations are identified in the Passway™ product schedule. Confirm the selected configuration before installation.
Material
Polypropylene — PP (Kopelen).
Heat resistance
Manufacturer-stated material heat-resistance temperature: 110°C.
Standard cover rating
A15 / Class A — pedestrian areas only.
Strong features
Built for inspection and servicing
- Air-intake feature supports intended hydraulic operation.
- Sight-glass arrangement assists with checking retained FOG condition.
- Cover locking levers provide secure closure and service access.
- Rubber cover packing helps control leakage and nuisance odour.
- Internal baffles reduce direct grease and sediment carry-over.
- Removable components support routine cleaning and inspection.
The standard A15 / Class A cover is for pedestrian areas only and is not suitable for vehicle loading.
Independent performance evidence
Tested to BS EN 1825-1
The M-43E is supported by a Declaration of Performance and independent laboratory testing against BS EN 1825-1.
Independent laboratory
Danish Technological Institute.
Tested nominal size
NS0.2.
Tested flow
0.2 litres per second under the BS EN 1825-1 test method.
Tested pipe configuration
50mm inlet and outlet.
Separation test result
Arithmetic mean residual hydrocarbon concentration: 1.05mg/L under the prescribed laboratory test procedure.
The independent report notes that the tested 50mm inlet and outlet are smaller than the connection size recommended in the relevant BS EN 1825-1 table. Larger Passway™ connection configurations are available and should be identified accurately in the project documentation.
The laboratory result is controlled product-performance evidence and is not a guaranteed field discharge concentration or automatic trade-waste approval.
New Zealand compliance
Compact separator assessed on performance
The M-43E is smaller than the 100L minimum volume used by the prescriptive G13/AS2 grease-trap Acceptable Solution.
This does not prohibit its use in New Zealand. Where the prescriptive Acceptable Solution is not followed, the BS EN 1825-1 product-performance evidence can form part of a project-specific Alternative Solution together with appropriate sizing, plumbing, drainage, installation and maintenance information.
Building-consent, wastewater-network and trade-waste requirements must be checked for the proposed installation. The product is not represented as automatically approved for every kitchen.
WCTNZ® support
Passway™ product and technical guidance
WCTNZ® supplies and supports Passway™ grease-management products in New Zealand and can provide product information, technical evidence and practical selection support.
