Compact grease management

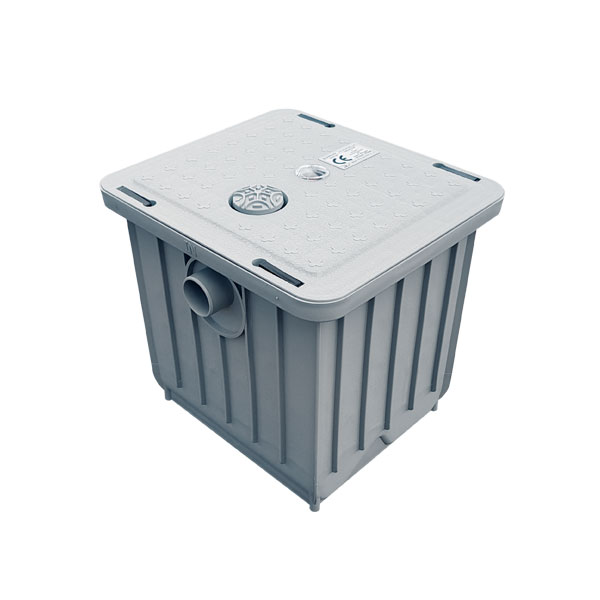

Passway™ | M-43F
A compact 40L Passway™ gravity grease separator for smaller kitchens, staff facilities and light food-preparation areas.
The M-43F uses controlled flow, internal baffles and gravity separation to reduce fats, oils and grease entering downstream drainage or treatment systems.
Total capacity40L
Compact unit
Water capacity30L
Operating volume
Grease capacity9L
FOG storage
Connections50 / 75 / 100mm
Available configurations
Product background
Small-format grease management
The Passway™ M-43F is suited to smaller kitchen applications where fats, oils and grease need to be intercepted before wastewater enters drainage, septic, greywater or wastewater treatment systems.
Lower-density FOG rises within the chamber while heavier material can settle. Internal baffles and the protected outlet reduce direct carry-over into downstream pipework.
The outlet remains wastewater. The M-43F reduces FOG and retained solids but does not produce potable, purified or disinfected water.
Best suited for
Compact kitchens and lower-load sites
- Domestic kitchens requiring source grease control.
- Staff kitchens and shared facilities.
- Small cafés and light food-preparation areas where the calculated loading suits the separator.
- Sites where installation space is limited.
- Kitchen wastewater feeding downstream septic, greywater or treatment systems.
Compact size does not establish suitability by itself. Select the M-43F from the connected fixtures, peak flow, grease and solids loading, connection configuration and required service interval.
Core specifications
M-43F product details
Dimensions
Approximately 400mm long × 450mm wide × 415mm high.
Product weight
Approximately 7.84kg.
Operating water capacity
30L.
Connection configurations
50mm, 75mm and 100mm configurations are identified in the Passway™ product schedule.
Material
Polypropylene — PP (Kopelen).
Heat resistance
Manufacturer-stated material heat-resistance temperature: 110°C.
Standard cover rating
A15 / Class A — pedestrian areas only.
Strong features
Designed for serviceable grease capture
- Compact moulded polypropylene body.
- Air-intake feature supports intended wastewater flow.
- Sight-glass arrangement assists with monitoring retained FOG condition.
- Cover locking levers provide secure closure and service access.
- Rubber cover packing helps control leakage and nuisance odour.
- Internal baffles help reduce grease and sediment carry-over.
- Removable components support routine inspection and cleaning.
The standard A15 / Class A cover is for pedestrian areas only and is not suitable for vehicle loading.
Independent product evidence
Passway™ BS EN 1825-1 test programme
The Passway™ grease-separator range is supported by independent testing against BS EN 1825-1.
The M-43F forms part of that tested range. The exact nominal-size rating, laboratory flow configuration and numerical performance result should be matched to the model-specific test evidence when required for a consent, network or technical-submission purpose.
WCTNZ® does not apply the M-43D or M-43E numerical test result to the M-43F. Model-specific technical evidence controls where an exact laboratory result is required.
New Zealand compliance
Compact separator assessed on performance
The M-43F is smaller than the minimum physical volume used by the prescriptive G13/AS2 grease-trap Acceptable Solution.
Where the prescriptive Acceptable Solution is not followed, applicable BS EN 1825-1 evidence may form part of a project-specific Alternative Solution together with suitable sizing, plumbing, drainage, installation and maintenance information.
Building-consent, wastewater-network and trade-waste requirements must be checked for the proposed installation.
WCTNZ® support
Passway™ product and technical guidance
WCTNZ® supplies and supports Passway™ grease-management products in New Zealand and can provide product information and practical selection support for proposed installations.
