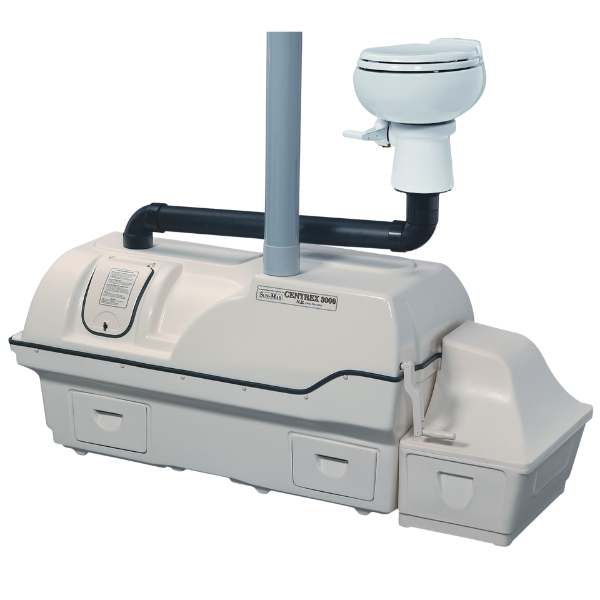

Sun-Mar™ | Centrex 3000 NE (Non Electric) - M/F Micro Flush

All Micro Flush Sun-Mar systems are down rated user capacity by one user.

With the use of Micro Flush Systems a large soakaway is needed (2000mmL x 1000mmW x 800mmD)

Sun-Mar Microflush Pedestal Models 510 & 511

Model 510 is a standard height toilet model with regular sized seats allowing for ease of use.

Model 511 is a low profile model allowing for raised floor setups when fall on waste pipe is a problem and is a great option for children to keep their feet on the ground.

The Sun-Mar centrex systems can take upto 4 Micro Flush Pedestals

Choose the fan voltage to match your power system.

ABS pipe (US spec) is supplied with the toilet. This is suitable for straight horizontal vent stacks.

If you'd like to adapt the unit to NZ pipe, please select this kit. You will need NZ pipe if you're looking to create elbows and bends.

You may need additional vent materials depending on how many storeys your building has.

Single Storey buildings with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension

Double Storey buildings require extra lengths of vent pipe. Please add 4 x 1m Vent Pipe Extensions.

Double Storey building with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension

Kit for stepping the vent stack around the eaves of the roof. Allows you to avoid penetrating the roof.

A wind-driven vent offers the best redundancy for your system ventilation. The wind-driven vent will assist the fan under heavy wind conditions, keeping the system operational in the event of a power outage or fan failure.
SharkVent™ | Wind Ventilator has high efficiency with a linear wind direction windvane (good for storm-prone areas).
Universal Vent ACC | Wind-Driven Vent has high efficiency in low windage. 2 colours: white or black.

Select this reducing collar to adapt the vent from 150mm to 100mm.

Select this reducing collar to adapt the vent from 150mm to 100mm.

Select this reducing collar to adapt the vent from 150mm to 100mm.

Extend your soft connection leachate drainpipe to reach your hard connection leachate drainpipe or soak-pit/trench.

Soft connections allow for flexible placement of the composting tank in relation to a hard connection or drain.

The system is packed with 1 meter of 25mm leachate drainpipe as a standard.

Extend your leachate drain via in-ground hard connection to reach your soak-pit/trench (soak-away).

Most soak-aways should be installed 3 meters away from the foundations of the structure but this remains circumstantial to the site.

Run your leachate drain into a soak pit (vertical soak-away) or into a trench (horizontal soak-away).
