    SKU: SM-MFP 511
    Sun-Mar Microflush Pedestal are ideal for use with Sun-Mar Central Composting Systems, but can also be used with holding tanks and domestic. The Microflush Pedestal Model 511 is a low profile model allowing for raised floor setups when fall on waste pipe is a problem and is a great option for children to keep there fee on the ground.
    $782.61 excl GST
    excluding shipping
    Estimated delivery time: Approx. 1–2 weeks (NZ-wide)
    i h
    Products
    Sun-Mar™ ultra-low flush fixture

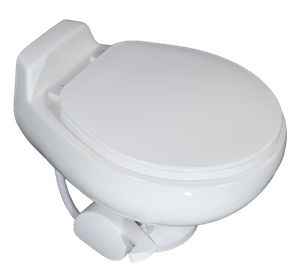

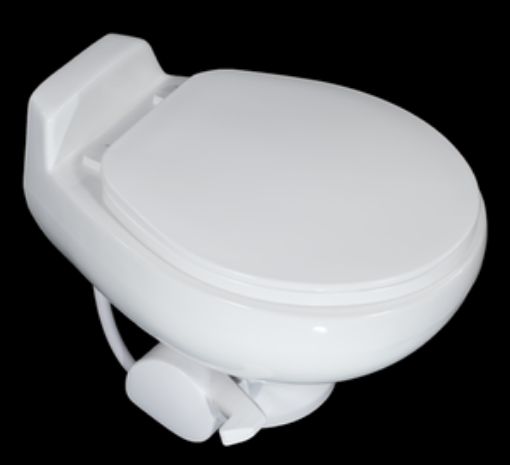

    Sun-Mar™ Microflush Pedestal Model 511

    An ultra-low flush pedestal for compatible Sun-Mar™ central composting systems.

    Using approximately one pint of water per flush, the Model 511 provides the familiar operation of a flush toilet while keeping water use very low.

    Flush volume
    1 pint
    Approximately 0.47 litres
    Connection
    75mm
    3-inch waste pipe
    System type
    Central
    Compatible Sun-Mar™ system
    Configuration
    Up to 4
    Subject to capacity and pipe fall
    System-only product: supplied only as part of, or as an approved replacement for, a compatible Sun-Mar™ central composting system.
    Ultra-low flush operation

    Familiar operation with minimal water use

    The Model 511 connects to the composting unit through a 3-inch, approximately 75mm, waste pipe.

    Its ultra-low flush operation uses approximately one pint of water per flush, providing the convenience of a flush toilet while minimising water demand.

    Multiple-pedestal installations

    Up to four pedestals may be possible

    Up to four compatible pedestals may be connected to one Sun-Mar™ central composting system where the chamber capacity, pipe layout, distance and required fall allow it.

    The final number of pedestals must be confirmed against the selected central system, expected user load and complete plumbing design.
    Installation

    Pipework and system matching

    Waste connection
    3-inch, approximately 75mm, waste pipe.
    Flush volume
    Approximately one pint, or 0.47 litres, per flush.
    PVC pipework
    PVC DWV pipe and fittings are not supplied with the pedestal.
    Plumbing supply
    The project plumber supplies pipe and fittings to suit the building and installation requirements.
    Design requirement
    The waste pipe must maintain the required fall and routing to the composting unit.
    The Model 511 must be matched to the correct Sun-Mar™ central composting system. Confirm compatibility and the full installation pathway with WCTNZ® before ordering.
