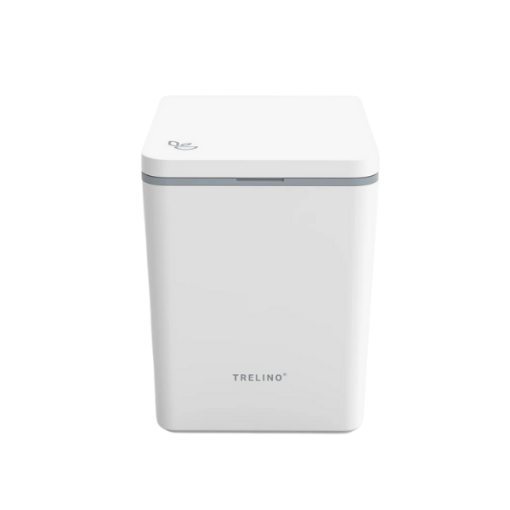

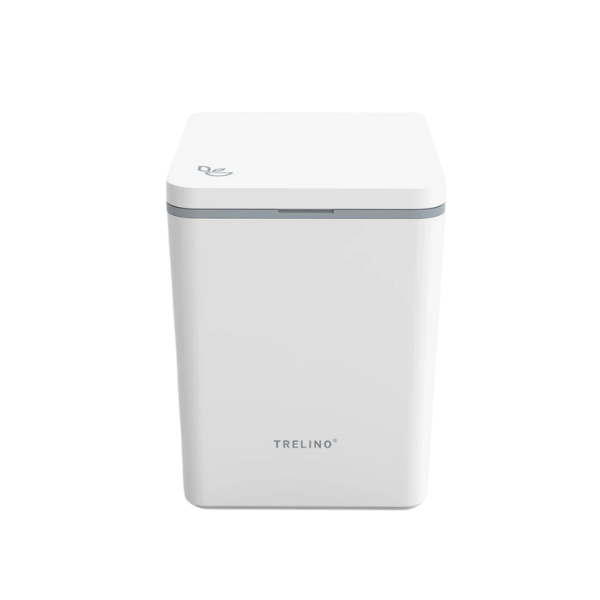

Trelino® | Evo L

Greater capacity with familiar toilet height

The Evo L is the largest model in the lightweight Evo series and provides increased capacity for installations where longer intervals between emptying are useful.

Its urine-diverting separator directs liquid and solid waste into separate 10L removable containers, while the rigid solids container provides full containment beneath any optional compostable liner.

Higher capacity for vehicle and off-grid use

• Self-contained, on-floor urine-diverting dry toilet.
• Separate 10L liquids and 10L solids chambers.
• Rigid solids chamber provides primary containment.
• Top access to both removable chambers.
• Compatible with compostable solids liners.
• Soft-close seat and lid.
• Water-resistant ABS body.
• Can be secured to the floor for fixed installations.
• Compatible with the Trelino® Fan Kit for active ventilation.
• Available in White and Anthracite.

Evo L dimensions and capacities

WCTNZ® recommended Trelino® configuration for self-contained vehicles

For a New Zealand Green Sticker/self-containment installation, the Trelino® Evo L is the Trelino® model WCTNZ® generally recommends where the available installation space allows.

The documented configuration requires the Evo L to be correctly secured and installed with the required Trelino® Fan Kit ventilation setup.

The larger 10L liquid and 10L solids chambers also make the Evo L the more practical choice where the toilet is being permanently incorporated into a campervan or motorhome.

Ongoing-use items

Keep suitable bulking agent, compatible compostable liners and a suitable enzymatic cleaner available for normal use and maintenance.

Authorised New Zealand supply

WCTNZ® is the exclusive authorised New Zealand distributor of Trelino® composting toilets and accessories.
