Ultra-compact urine-diverting dry toilet

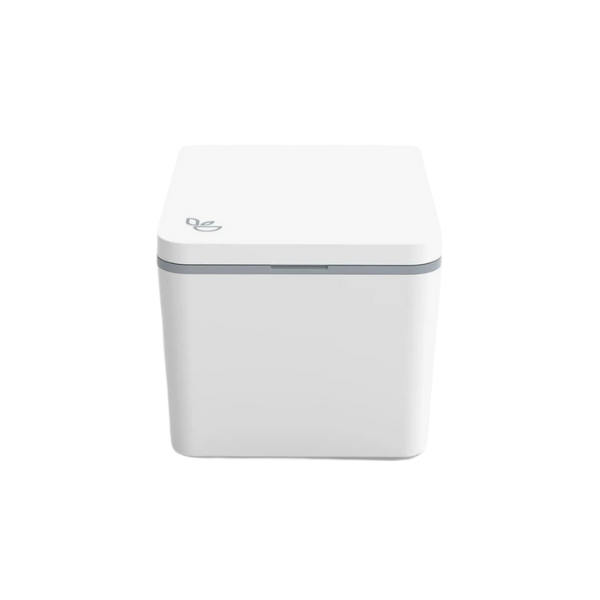

Trelino® | Evo S
The smallest and lightest toilet in the Trelino® Evo range, designed for compact spaces where a conventional toilet is impractical.
Evo S separates liquid and solid waste into dedicated removable chambers and provides full internal solids containment — the compostable liner is an aid to emptying, not the primary containment vessel.
Weight3.9kg
Ultra-lightweight
Liquids4.5L
Removable chamber
Solids6.5L
Full containment chamber
DesignAward Winner
German Design Award 2023
NZ Green Sticker / self-containment: the Trelino® Evo S is not a WCTNZ®-supported Green Sticker compliant model. Adding a fan kit does not convert the Evo S into a supported Green Sticker configuration. Where New Zealand self-containment certification is required, WCTNZ® recommends moving to the Trelino® Evo L with the required Fan Kit installation.
Product background
Designed for the smallest spaces
Designed in Germany, the Trelino® Evo S is well suited to campervans, RVs, boats, camping setups and other locations where space and weight are limited and Green Sticker certification is not required.
Its urine-diverting separator keeps liquids and solids in separate removable containers, while top access allows both chambers to be reached without dismantling the toilet.
Key features
Compact without relying on a bag for containment
- Self-contained, on-floor urine-diverting dry toilet.
- Rigid internal solids chamber provides primary containment.
- Removable liquids and solids chambers accessed from above.
- Compostable liners can be used inside the solids chamber for easier emptying.
- Soft-close seat and lid.
- Integrated grip handles support portable use.
- Water-resistant ABS construction suited to compact wet-area layouts.
- Available in White and Anthracite.
Specifications
Evo S dimensions and capacities
Dimensions
330mm wide × 390mm deep × 296mm high.
Body material
ABS synthetic material.
Rated user load
Up to 150kg.
Colours
White or Anthracite.
NZ self-containment
Evo S is not the WCTNZ® Green Sticker configuration. For a supported Green Sticker installation, WCTNZ® recommends the Trelino® Evo L with the required Fan Kit.
Consumables
Ongoing-use items
For ongoing operation, WCTNZ® recommends keeping suitable bulking agent, compatible compostable liners and a suitable enzymatic cleaner available.
WCTNZ® support
Authorised New Zealand supply
WCTNZ® is the exclusive authorised New Zealand distributor of Trelino® composting toilets and accessories.
