Universal Vent | 100mm | Vent Pipe Kit

Be the first to review this product

Brand: WCTNZ® | Waterless Composting Toilets NZ

SKU: ACC-UV-100-VPK

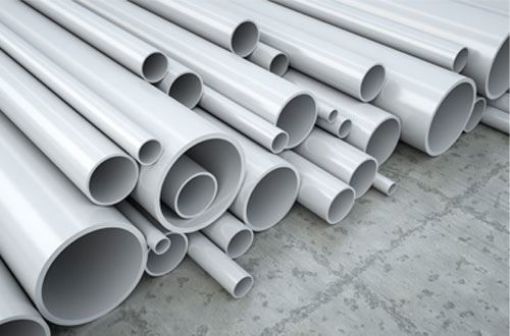

100mm DWV (Drain Waste Vent) PVC Pipe Kit suitable for most situations where a 100mm vent stack is required. Compatible with all Nature Loo™ systems, all Clivus Multrum™ systems, Sun-Mar™ Excel NE and Sun-Mar™ Centrex NE systems.

Choose the Product options below

Make sure your vent stack is high enough - is your building single storey or double storey?

You may need additional vent materials depending on how many storeys your building has.

Single Storey
Double Storey

If your building has a high-profile roof, please add extra length of pipe

Single Storey buildings with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension

830mm Vent Pipe Extension [+$21.74]

Please add extra length of pipe to suit your Double Storey building

Double Storey buildings require extra lengths of vent pipe. Please add 4 x 1m Vent Pipe Extensions.

4 x 1m Vent Pipe Extensions + Accessories [+$272.00]

If your building has a high-profile roof, please add extra length of pipe

Double Storey building with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension

830mm Vent Pipe Extension [+$21.74]

Want to step around your eaves and avoid penetrating the roof?

Kit for stepping the vent stack around the eaves of the roof. Allows you to avoid penetrating the roof.

Universal Vent | 100mm | Vent Eaves Step Kit [+$61.50]

Availability: Availability - on backorder and will be dispatched once in stock (On back-order – expected in approx. 1–2 weeks).

$306.00 excl GST

excluding shipping

Estimated Local NZ Delivery Time: Approx. 1 week (NZ-wide)

Qty:

i h

Products

WCTNZ® vent installation kit

100mm DWV PVC Vent Pipe Kit

A complete 100mm DWV PVC vent-pipe package for selected Nature Loo™, Clivus Multrum™ and Sun-Mar™ composting toilet installations.

Compatible with: all Nature Loo™ systems, all Clivus Multrum™ systems, Sun-Mar™ Excel NE and Sun-Mar™ Centrex NE systems using a 100mm vent arrangement.

What is included

4 × 1000mm lengths of 100mm diameter DWV PVC pipe.
3 × 100mm PVC pipe saddles.
3 × 100mm PVC straight joiners.
1 × 125ml PVC cement for pipe joins.
30mm stainless-steel screw kit with wall plugs for fixing the pipe saddles.
1 × No. 4 Dektite roof flashing.

Standard vent height

The standard kit provides up to approximately 4 metres of vertical vent pipe and is generally suited to a single-storey building with a relatively low-profile A-frame or mono-pitch roof.

Where the building or roof is higher, additional vent-pipe extensions may be required so the completed vent can terminate at the required height above the roof.

Vent height: WCTNZ® installation guidance is to allow sufficient vent length for the termination to sit at least 0.6m above the roof apex. Final vent position and termination should be confirmed for the actual building and installation.

How much additional pipe should I allow?

Single-storey building with a low-profile A-frame or mono-pitch roof

Standard kit normally sufficient

Single-storey building with a high-profile A-frame or mono-pitch roof

Add 1 × 830mm Vent Pipe Extension

Double-storey building with a low-profile A-frame or mono-pitch roof

Add 4 × 1m Vent Pipe Extensions

Double-storey building with a high-profile A-frame or mono-pitch roof

Add 4 × 1m Vent Pipe Extensions plus 1 × 830mm Vent Pipe Extension

Planning guide: the quantities above are intended to help with ordering. Building dimensions, roof pitch, vent routing and the position of the composting toilet system can change the actual pipe length required.

Stepping around the roof eaves

Where you would prefer to route the vent around the eaves rather than penetrate the roof, add the appropriate Vent Eaves Step Kit to the installation.

Before ordering: check the proposed vent route, building height and roof profile. If you are unsure how much pipe or which vent accessories are required, contact WCTNZ® with your toilet model and basic building dimensions.
