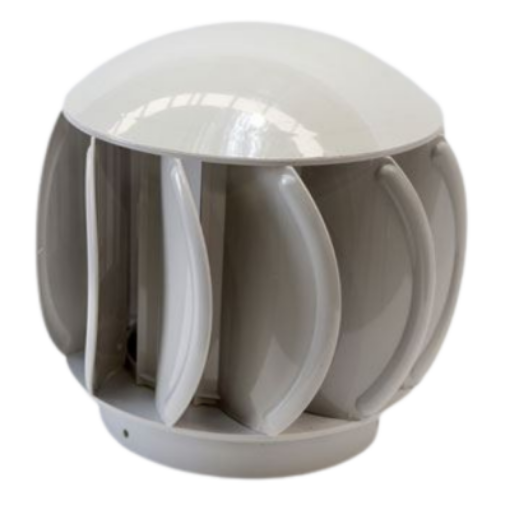

Universal Vent ACC | Wind-Driven Vent (White)

Be the first to review this product

Brand: WCTNZ® | Waterless Composting Toilets NZ

SKU: ACC-UV-WDV

Wind-driven ventilation ideal option for non-powered (NE) vent systems or as backup ventilation for power outages when the system is turned off to keep the room free of stale air. Used most commonly with the off-grid situation.

Choose the Product options below

Adapt the Wind-Driven Vent to 100mm or select both options for 50mm vent pipe

Select this reducing collar to adapt the vent from 150mm to 100mm.

Wind-Driven Vent 100mm Adaptor [+$65.00]

Adapt the Wind-Driven Vent to 50mm

Select this reducing collar adaptor to reduce the pipe further, from 100mm to 50mm. Compatible with this system.

Note: to reduce to 50mm, the 100mm adaptor above is also required - leave selected.

Note: systems with 50mm piping will require a mounting stay (not supplied).

Wind-Driven Vent 50mm Adaptor [+$26.09]

Availability: In stock

$347.83 excl GST

excluding shipping

Estimated delivery time: Approx. 4–5 working days (NZ-wide)

Qty:

i h

Products

Passive wind-powered ventilation

Universal Vent ACC | Wind-Driven Vent

A wind-driven ventilator for passive and non-powered composting toilet vent systems.

The ventilator fits directly onto 150mm PVC pipe and can be adapted to suit 100mm or 50mm vent pipes using the appropriate reducing adaptor.

Direct fit

150mm PVC

Standard mounting size

Adaptable fit

100mm / 50mm

With reducing adaptor

Extraction

135 L/s

At a wind speed of 5m/s

Power

Wind-driven

No electrical connection

Description

Passive extraction for off-grid vent systems

Wind-driven ventilation can support non-powered composting toilet vent systems and provide passive airflow when suitable wind is available.

It can also provide supplementary airflow alongside another ventilation method, subject to the design of the complete vent system.

Construction and performance

Durable materials for exposed locations

UV-stable, hail-resistant engineering-polymer construction.
Vertical-vane ventilator design.
Precision stainless-steel bearings for exposed environments.
Wind-powered operation with no electrical connection.
Rated extraction of 135 litres per second at a wind speed of 5m/s.
White exterior finish.

Pipe compatibility

Select the correct adaptor for your vent pipe

150mm PVC

The ventilator is designed to fit directly onto 150mm PVC pipe.

100mm PVC

Requires the matching 150mm-to-100mm reducing adaptor.

50mm PVC

Requires the matching reducing adaptor selected through Product Options.

Adaptor required: The ventilator does not fit directly onto 100mm or 50mm pipe. Select the correct adaptor in Product Options before ordering.

Ventilation-design note: Wind-driven ventilators are dependent on available wind and the performance of the complete vent route. Pipe diameter, vent height, bends, nearby buildings and local wind exposure all affect passive airflow.
