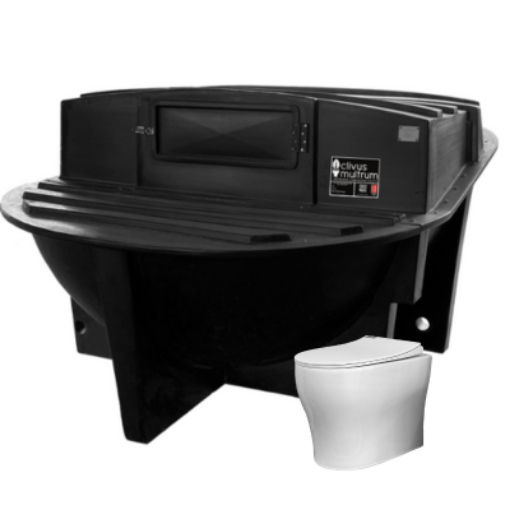

Clivus Multrum™ | CM14 Next-Gen Package

Please select the primary pedestal (toilet fixture) option you would like to accompany your composting system.

Note; that the Urine-Diversion (UD) pedestal option is most suitable where there is high use in peek or large family gatherings.

Note; that with Urine Diversion, it is recommended that the compost mass is kept wet to avoid the pile drying out. Consider getting the hand-held bidet sprayer accessory for facilitating the hydration of compost.

Please select the second pedestal (toilet fixture) option you would like to accompany your composting system. Optional (Leave NIL if you would only purchase a single pedestal for this system).

A hardwearing Nano-Ceramic Non-Stick Coating is applied onto the inner side of the Pedestal (toilet fixture) for maximum cleanliness.

Note; basic cleaning will still be required.

Note; non-stick is hydrophobic and repels liquids only.

Use two fans if connecting two or more pedestals (toilet fixtures) to one CM tank.

Dual fan installation options:

Series - single vent stack with two fan units installed in-line

Parallel - dual vent stack with one fan unit per vent stack (recommended)

Choose the fan voltage to match your power system. (Add additional fan units for replacement parts).

All ELV (Extra Low Voltage) (12v-48V) are suitable for Off-grid power systems.

Note: if more than two pedestals are connected to one CM tank, fan unit wattage must be higher than 5w.

This system comes with vent materials for a 4m vent stack. You may need additional vent materials depending on how many storeys your building has.
In residential applications, a vertical vent must extend 0.6m above the roofline - this is a code requirement.

Single Storey buildings with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension per vent stack.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above, please select 2 x 800mm Vent Pipe Extensions.

Double Storey buildings require extra lengths of vent pipe. Please add 4 x 1m Vent Pipe Extensions per vent stack.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above, please select 8 x 1m Vent Pipe Extensions.

Double Storey building with a high-profile roof (A frame or mono-pitch) require extra lengths of vent pipe - add one 800mm Vent Pipe Extension.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above, please select 2 x 800mm Vent Pipe Extensions.

Kit for stepping the vent stack around the eaves of the roof. Allows you to avoid penetrating the roof.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above, please select 2 x Vent Stack Eaves Step Kits.

A wind-driven vent offers the best redundancy for your system ventilation. The wind-driven vent will assist the fan under heavy wind conditions, keeping the system operational in the event of a power outage or fan failure.
SharkVent™ | Wind Ventilator has high efficiency with a linear wind direction windvane (good for storm-prone areas).
Universal Vent ACC | Wind-Driven Vent has high efficiency in low windage. 2 colours: white or black.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above, please select 2 x wind-driven vents.

Select this reducing collar to adapt the vent from 150mm to 100mm.

If you have selected the Parallel Dual Fan (Dual Vent Stack) option above and 2 x SharkVent™, please select 2 x 100mm Adaptors.

Select this reducing collar to adapt the vent from 150mm to 100mm.
If you have selected the Parallel Dual Fan (Dual Vent Stack) option above and 2 x Wind-Driven Vents, please select 2 x 100mm Adaptors.

Select this reducing collar to adapt the vent from 150mm to 100mm.
If you have selected the Parallel Dual Fan (Dual Vent Stack) option above and 2 x Wind-Driven Vents, please select 2 x 100mm Adaptors.

Choose how you'd like to manage the liquid (leachate) produced by your composting toilet system:

Discharge to Drain or Trench
Divert excess leachate to an approved soakage trench, drain field, or dispersal area. This option is suitable for most installations with available drainage capacity and may require a resource consent under the Resource Management Act 1991 (RMA), depending on your local council’s rules.

Zero Discharge System (Reticulation)
Select our sealed zero-discharge system to recirculate leachate back into the composting chamber for evaporation or absorption. Since no liquid is discharged to land, water, or air, this option falls outside the scope of the RMA and typically does not require resource consent. Ideal for sensitive environments, remote sites, or areas with strict discharge regulations.

System sizes with Automatic or Manual reticulation dosing cycle options
Automatic operations are on timer, and Manual operations are user-operated.

Small 80L system - Suitable for a light-use system
Large 450L system - Suitable for a heavy-use system
