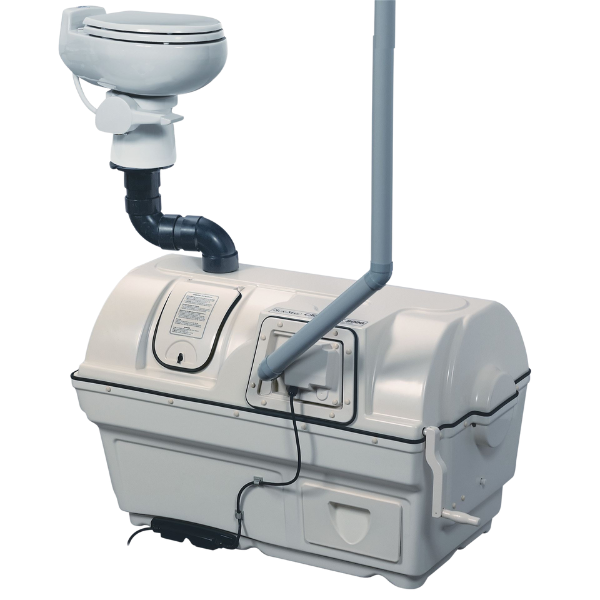

Sun-Mar™ | Centrex 2000 - M/F (Micro Flush) 240

All Micro Flush Sun-Mar systems are down rated user capacity by one user.

With the use of Micro Flush Systems a large soakaway is needed (2000mmL x 1000mmW x 800mmD)

Sun-Mar Microflush Pedestal Models 510 & 511

Model 510 is a standard height toilet model with regular sized seats allowing for ease of use.

Model 511 is a low profile model allowing for raised floor setups when fall on waste pipe is a problem and is a great option for children to keep their feet on the ground.

The Sun-Mar centrex systems can take upto 4 Micro Flush Pedestals

Add a wind-driven vent to create redundancy. The wind-driven vent will assist the fan under heavy wind conditions, keeping the system operational in the event of a power outage or fan failure.
2 colours: white or black.

Select this reducing collar to adapt the vent from 150mm to 100mm.

Select this reducing collar adaptor to reduce the pipe further, from 100mm to 50mm. Compatible with this system.

Note: to reduce to 50mm, the 100mm adaptor above is also required - leave selected.

Note: systems with 50mm piping will require a mounting stay (not supplied).

Select this reducing collar to adapt the vent from 150mm to 100mm.

Select this reducing collar adaptor to reduce the pipe further, from 100mm to 50mm. Compatible with this system.
Note: to reduce to 50mm, the 100mm adaptor above is also required - leave selected.
Note: systems with 50mm piping will require a mounting stay (not supplied).

Extend your soft connection leachate drainpipe to reach your hard connection leachate drainpipe or soak-pit/trench.

Soft connections allow for flexible placement of the composting tank in relation to a hard connection or drain.

The system is packed with 1 meter of 25mm leachate drainpipe as a standard.

Extend your leachate drain via in-ground hard connection to reach your soak-pit/trench (soak-away).

Most soak-aways should be installed 3 meters away from the foundations of the structure but this remains circumstantial to the site.

Run your leachate drain into a soak pit (vertical soak-away) or into a trench (horizontal soak-away).
