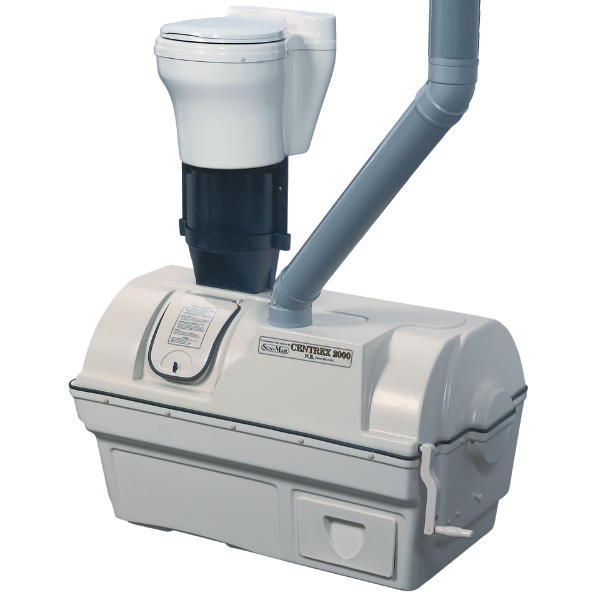

          Sun-Mar™ | Centrex 2000 NE (Non-Electric) - A/F (Air Flow)

          Manufacturer: Sun-Mar™
          SKU: SMC-2000 NE A/F
          The Centrex 2000 A/F (Air Flow) NE is a low voltage, waterless “off-grid” alternative to the straight Centrex 2000 model. The system is designed for use in conjunction with a waterless toilet pedestal and processes waste under the bathroom floor, the non-electric system is slightly smaller than its electric counterpart.

          Choose the Product options below


          Please select the primary pedestal (toilet fixture) option you would like to accompany your composting system.

          Note; that the Urine-Diversion (UD) pedestal option is most suitable where there is high use in peek or large family gatherings.

          Note; that with Urine Diversion, it is recommended that the compost mass is kept wet to avoid the pile drying out. Consider getting the hand-held bidet sprayer accessory for facilitating the hydration of compost.


          A hardwearing Nano-Ceramic Non-Stick Coating is applied onto the inner side of the Pedestal (toilet fixture) for maximum cleanliness.

          Note; basic cleaning will still be required.

          Note; non-stick is hydrophobic and repels liquids only.


          Choose the fan voltage to match your power system.

          ABS pipe (US spec) is supplied with the toilet. This is suitable for straight horizontal vent stacks.

          If you'd like to adapt the unit to NZ pipe, please select this kit. You will need NZ pipe if you're looking to create elbows and bends.

          Add a wind-driven vent to create redundancy.
          The wind-driven vent will assist the fan under heavy wind conditions and keep the system going in case of power outage or fan failure.

          Required for adaption to smaller vent pipes.

          Note: systems with 50mm piping will require a mounting stay (not supplied).

          Extend your drain pipe to reach your soak pit/trench.

          The system is packed with 1 meter of 25mm leachate drain pipe as a standard.

          Most soakaways should be installed 3 meters away from the foundations of the structure but this remains circumstantial to the site.

          Run your leachate drain into a soak pit (vertical soak-away) or into a trench (horizontal soak-away).

          Availability: Availability - Special Order | (3-4 months, Estimated Time of Arrival(ETA))
          Old price: $5,043.48 excl GST
          $5,043.48 excl GST
          excluding shipping
          Dispatch; Transport Time Frames: Special Order | (3-4 months, Estimated Time of Arrival(ETA))
          i h
          Product Files
          Complete Catalog | Split Systems (Under-floor)
          Sun-Mar™ | Media

           AVAILABILITY ETA: Expected to arrive in January, purchasing will be available when the product is in stock.

          Perfect for medium to heavy seasonal or light residential use, the Centrex 2000 allows for both a longer composting cycle and a larger compost waste volume

          Whilst not as large as the Centrex 3000, the 2000 A/F NE model still comfortably accommodates a seven-person holiday house usage, requiring only one compost removal annually. In a residential capacity, the compost will need to be dealt with more frequently.

          There is no heating unit in this model so it will operate beautifully on solar or mains power. Without the heater, the evaporation process is not as effective as in the 240-volt system. Therefore an overflow drain to a small sub-surface gravel pit is required (200x40x40cm).

          The Centrex 2000 is supplied with a 1" drain hose which should be connected to the 1" drain at the bottom of the unit.

          Whilst not as large as the Centrex 3000, the Centrex 2000 NE (Non-Electric) - A/F (Air Flow) model still comfortably accommodates a seven-person holiday house usage, requiring only one compost removal annually. In a residential capacity, the compost will need to be dealt with more frequently.

          A 100mm vent and low voltage fan help to ensure that odors are dispelled with a minimal electrical draw.

          ELECTRICAL RATING Fan Watts (Required or Optional Hookup) 0.5 (Required) Amps
          DIMENSIONS 730mm x 1200mm x 770mm
          FLOORSPACE REQUIRED Height to Bottom – Top of Waste Inlet Assembly 749m m Vent Inlet Center Distance From Rear – Top Side vent outlet position

          Capacity Notes

          Listed capacities refer to the number of people, on average, using the unit per day. Do not pick a unit that is below your capacity.

          Fixture Notes

          The Sun-Mar Centrex AirFlow Systems come with Polymarble fixture options only.


          NSF/ANSI 41 Standard - Non-Liquid Saturated Treatment Systems

          This system is Certified for liquid containment, odors, and solid end products


          Sun-Mar is certified by the NSF under this stringent standard. Testing is conducted for 6 months at an NSF recognized, independent testing laboratory under a strict test protocol.

          To be certified, the unit must operate odor-free at maximum capacity (including overload conditions) and produce clean, safe compost.

          What you need to know about Composting Toilets


          As additional verification, NSF obtains and tests additional compost samples from randomly selected field operations, and conducts interviews with the users of these units. For verification, please check the NSF website.

          NSF International is a not-for-profit, non-governmental organization. It is the world leader in standards development, product certification, education, and risk management for public health and safety, and for 75 years has been committed to public health, safety, and protection of the environment.
